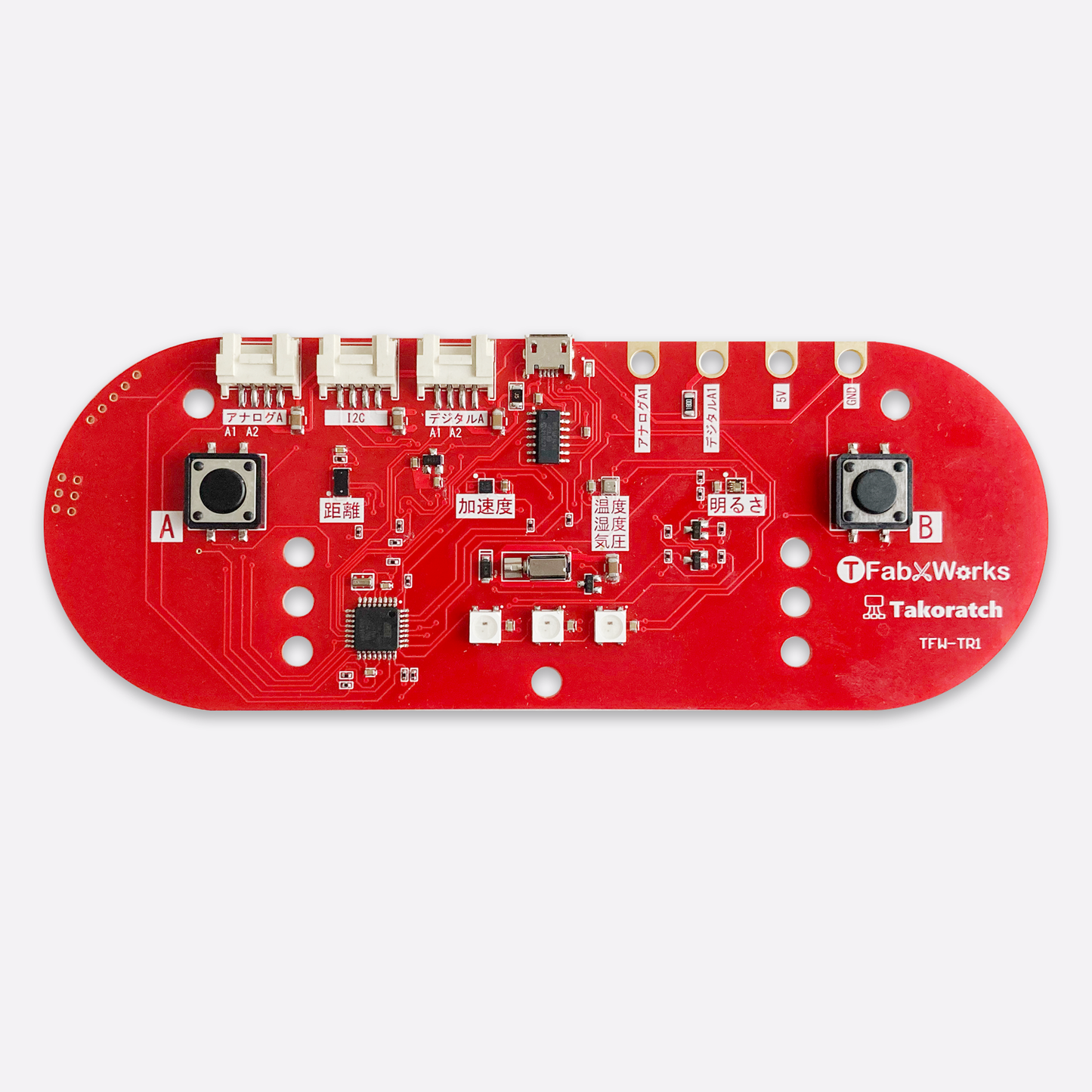

Takoratch

A low-cost board with the same sensors and functionality as the AkaDako STEAM Tool.

Product contents

• Main unit x1
• Problem-solving programming cards
• USB cable x1

specification

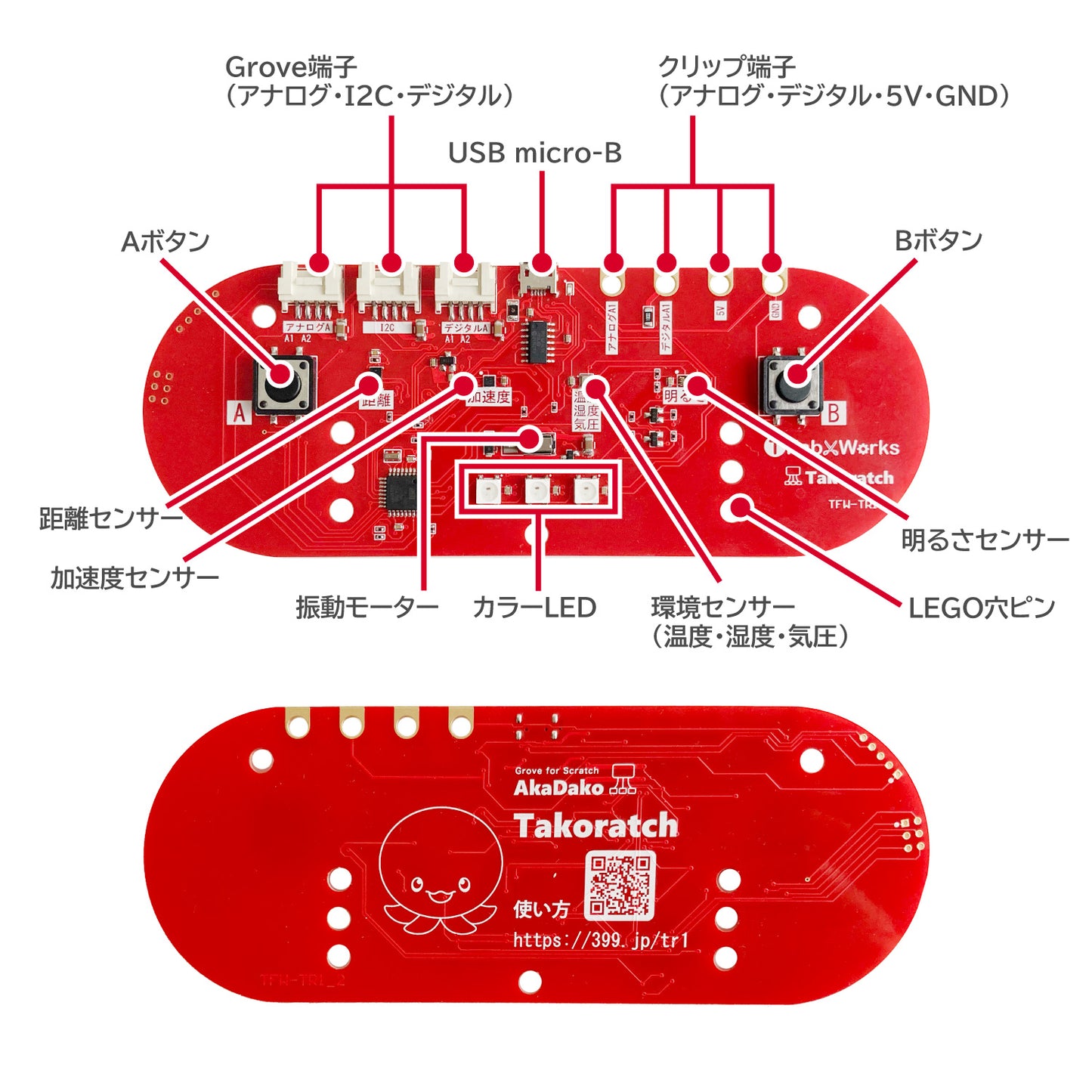

On-board sensors

• Laser distance (10cm~200cm)
• Brightness (about 0 to 64,000lx)
• Temperature (-40 to 85°C ±1°C)
• Humidity (0 to 100% error ±3%)
• Atmospheric pressure (300-1,100hPa ±1hPa)
• Acceleration (3 axes ±8g)

Installed actuator

• Vibration motor (PWM control)
• Full color LED (24bit color x 3)

Input/output terminal

• Clip terminal (analog input x 1, digital input/output x 1, 5V, GND)
• Grove terminal (analog input x 1, digital input/output x 1, I2C x 1)
• USB-microB

Operating environment

• Supported OS: Windows 10 or later, ChromeOS 89 or later, iOS 15 or later
• Supported browsers: Chrome 89+, Edge 89+, Scrub 1.1.1+

Precautions

For iPad users

You need to install the Scratch-specific browser "Scrub". Also, if you use a servo motor by connecting the Takoratch Mini to an iPad with a Lightning connector, the servo motor may become unstable. For more information, please check here .
